The Connect software and the Connect Case Center simplify the cooperation between dental practice and laboratory. Once registered, both sides communicate directly through the Connect Case Center. The data model is transferred within a few minutes and gives the laboratory an exact picture of the case.
The direct transmission of model data to your lab within a few minutes allows your dental technician to look at the case almost simultaneously with the practice. Thus, a first consultation with your laboratory can already be done while the patient is still in the treatment room. Another advantage over conventional impression methods.
Prepare, scan, send - the digital impression is so simple. It can be easily integrated into your existing treatment process. The complete design of the restoration is carried out as usual by the laboratory of your choice.

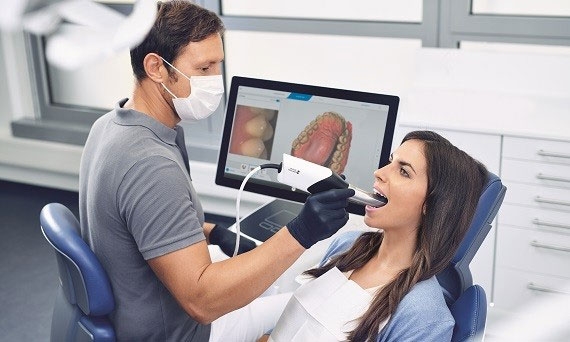

The workload in your practice is considerably simplified. With just a few scans, you can capture your preparation, neighboring teeth and antagonists. A half-jaw can be recorded in less than a minute. You can maintain a convenient treatment position the entire time. The 3D preview of the individual recordings also makes your work easier.
Patients do not experience the urge to gag
Simply take the impression and send

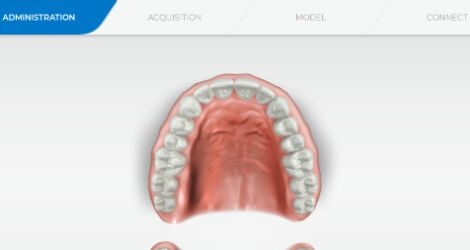

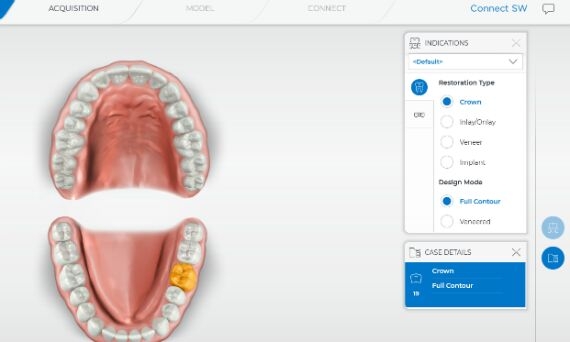

Practice users are guided through the four phases of digital impressions step-by-step:

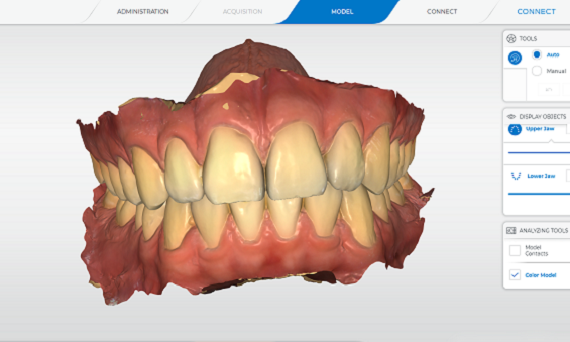

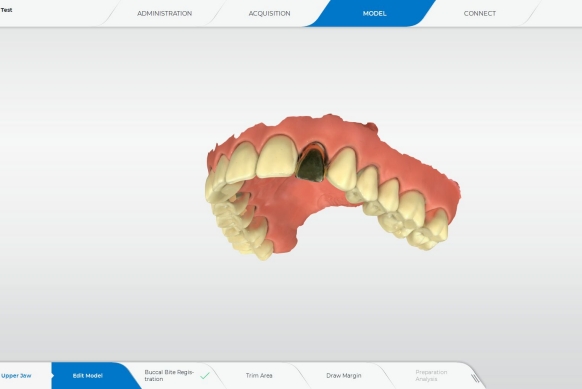

The digital impression is visualized on the monitor as a 3D model. Different surfaces are shown in their natural color – for improved orientation in the oral cavity and clear distinction between the preparation margin and gingiva.
Digital impressioning with Primescan and Omnicam supports a large range of indications from single tooth and bridge restorations to implant planning and design, as well as orthodontic applications.
prepCheck 5 allows preparations to be analyzed and assessed in a variety of ways.
Find out all about prepCheck 5, the plus for universities and students, here.
Prepare, scan, send – the digital impression is so simple. With Connect, your practice benefits from an innovative process for processing precise digital impressions. Registration is free of charge for Primescan and Omnicam users.
This Whitepaper describes the technical aspects of CAD/CAM SW products that are relevant for IT Security and Data Protection in general.

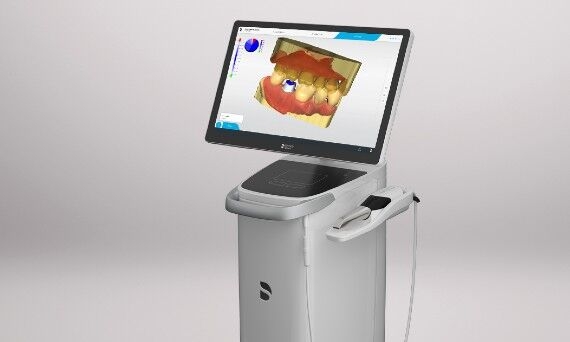

| Dimensions (W x H x D) |
408 x 1023-1190* x 443** mm |
| Monitor |
21,5", 1920 x 1080 pixel monitor resolution (FHD) |
| Device weight |
39,5 kg |
| Scanner weight Primescan |
457 gr with plastic sleeve and 524,5 gr with metal sleeve |
| Scanner weight Omnicam | 316 gr |
| Dimensions Primescan (W x H x L) |
50,9 x 58,8 x 253 mm |
| Dimensions Omnicam (W x H x L) |
40 x 50 x 223 mm |
| Powder-free | Yes |
| Color | Yes |
| Acquisition technique Primescan |
Dynamic Depth Scan and High Frequency Contrast Analysis. Real-time removal of soft-tissue artifacts during scanning. The scanner is moved over the tooth surface at a distance of 0 to 19 mm. |
| Acquisition technique Omnicam | Filming: The data is recorded continuously without blurring by means of the flowing acquisition technique. The scanner is moved over the tooth surface at a distance of 0 to 15 mm. |
| Power supply |
- Standard power supply (100–240 VAC 50/60 Hz) - Optional: Uninterruptible power supply (short-term battery) |
| Battery capacity | 288,8 Wh; More than 60 minutes of battery running time, up to 4-hour standby time |
| Network connection |
LAN und WLAN |
| Software |
Connect SW (no follow-up costs) - Acquisition of preparation, antagonist and bite registration - Calculation of the 3D model within seconds - Definition of the preparation margin by the practitioner or dental laboratory - Upload of the 3D model to the Connect Case Center for transmission to a lab or specialised partner |
| Indications |
Crowns and bridges, inlays, onlays, veneers, temporary restorations, abutments and surgical guides (restricted), orthodontics (CEREC Ortho), model casting |
* Height depends on wheter monitor is tilted: When tilted maximally 1023 mm, when upright 1190 mm ** W= 540 mm with swivelled out monitor |
|
* inLab SW interface module for .STL export required
